· 建筑手绘表现

泰国玛希隆音乐厅

设计方:Architects 49 Limited

位置:泰国

绘图:一行手绘

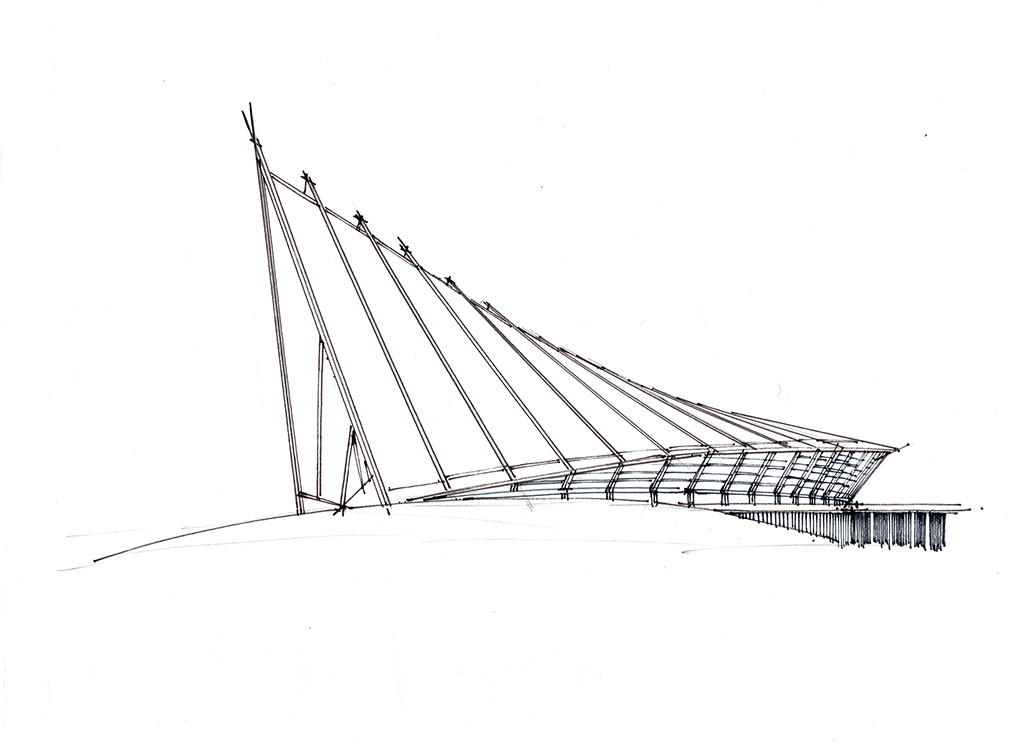

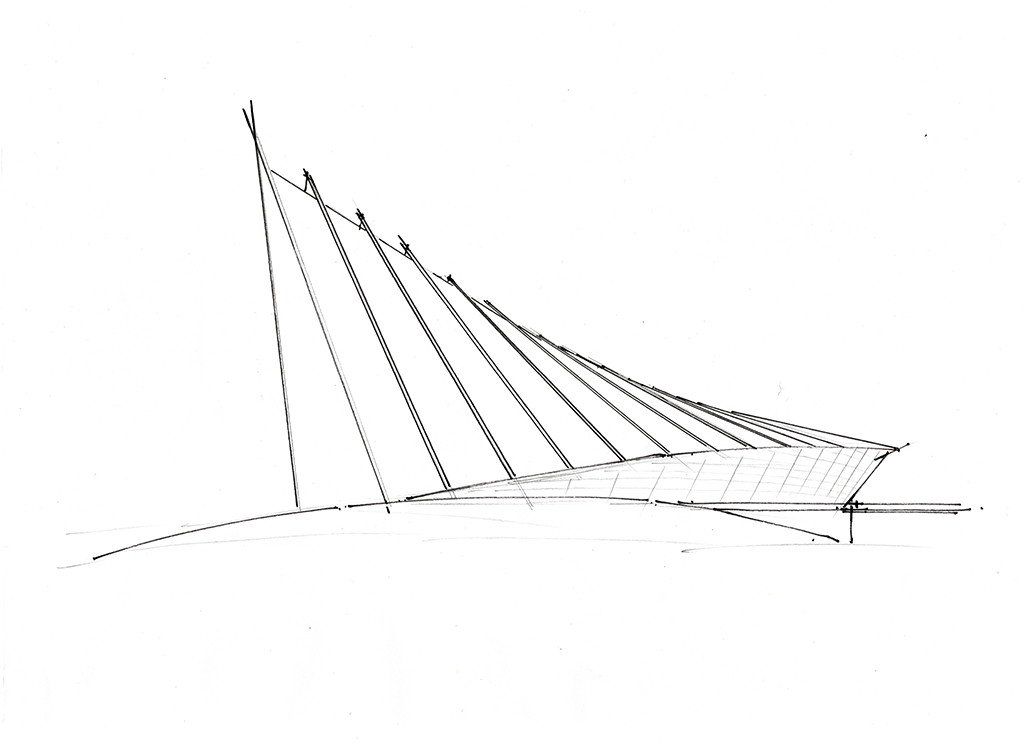

STEP1:在形体偏不规则的建筑,起形时先分析建筑的倾斜的方向和角度,画的时候可以在画面中打一些辅助线,方便把握建筑的形体比例。

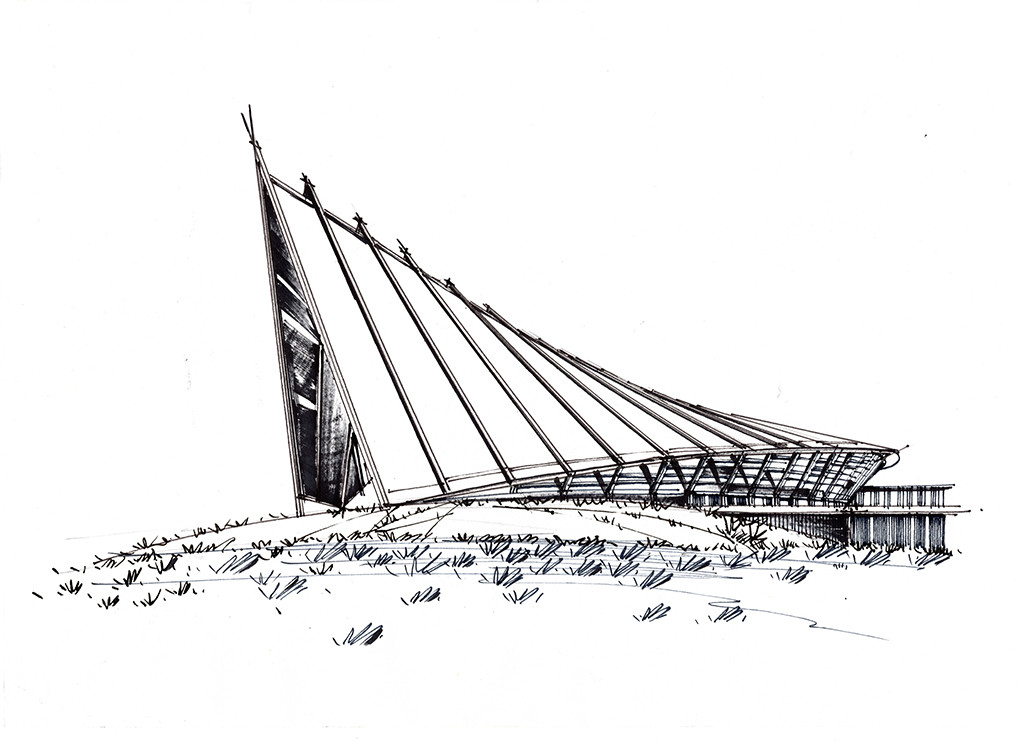

STEP2:材质首先从建筑玻璃开始着手,画的时候注意倾斜角度及进深,所有的材质及建筑的外边框一定加双线,强调体积及方便后期加阴影,建筑的边缘位置排线加重,底部强调斜坡的草地。

STEP3:最后处理配景植物及投影阴影内容。在表现这种斜坡上面的建筑时,远景的植物可以省略,重点加一下中间植物,加的时候首先底部收边,中间稍事加一下,然后排线强度过度。最后灰黑色马克加重建筑的主入口,强调建筑视觉视觉中心。

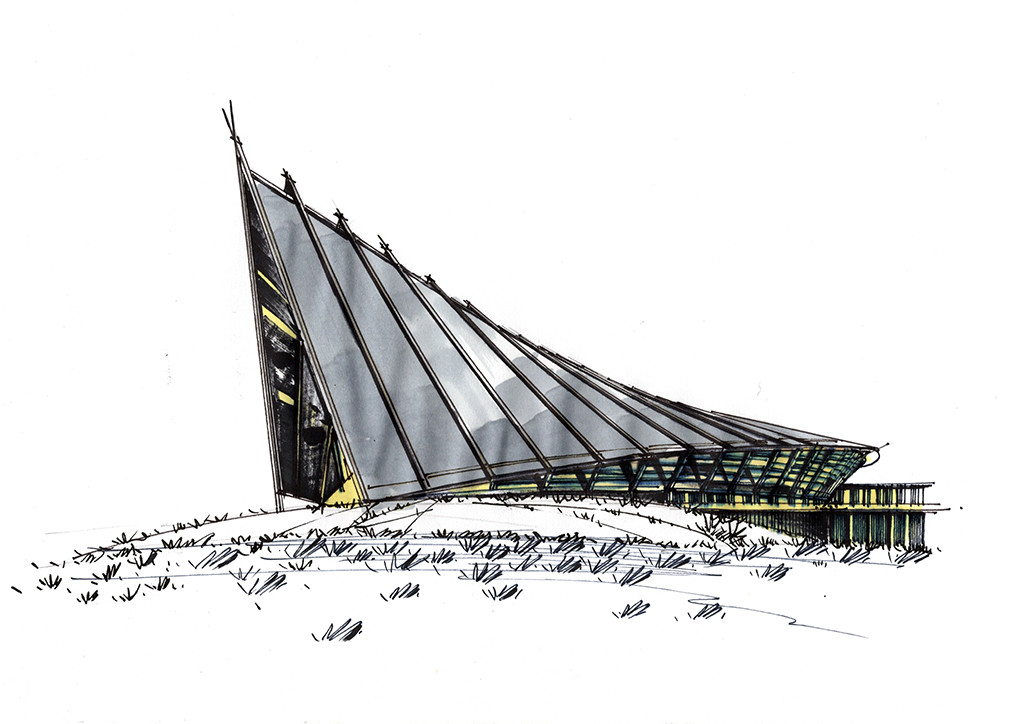

STEP4:分析光源,从建筑表皮的主体色开始,颜色偏重,尽量可以从颜色较浅一些冷灰上色,注意光线变化,玻璃的位置是灯光的颜色,可以顺便加上。

马克笔:CG2.CG4. 49

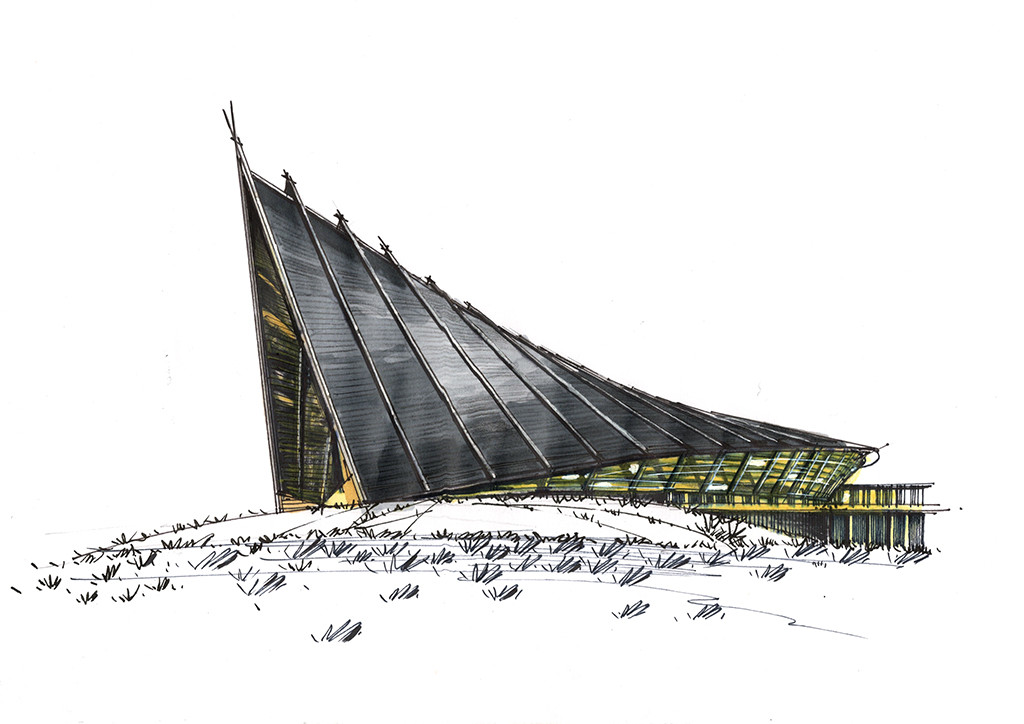

STEP5:继续加深建筑表皮,注意用彩铅可以表达材质的细节,灯光部位可以局部点亮,增加整体气氛。

马克笔:CG6.CG8. 49 彩铅:黑色,淡黄色

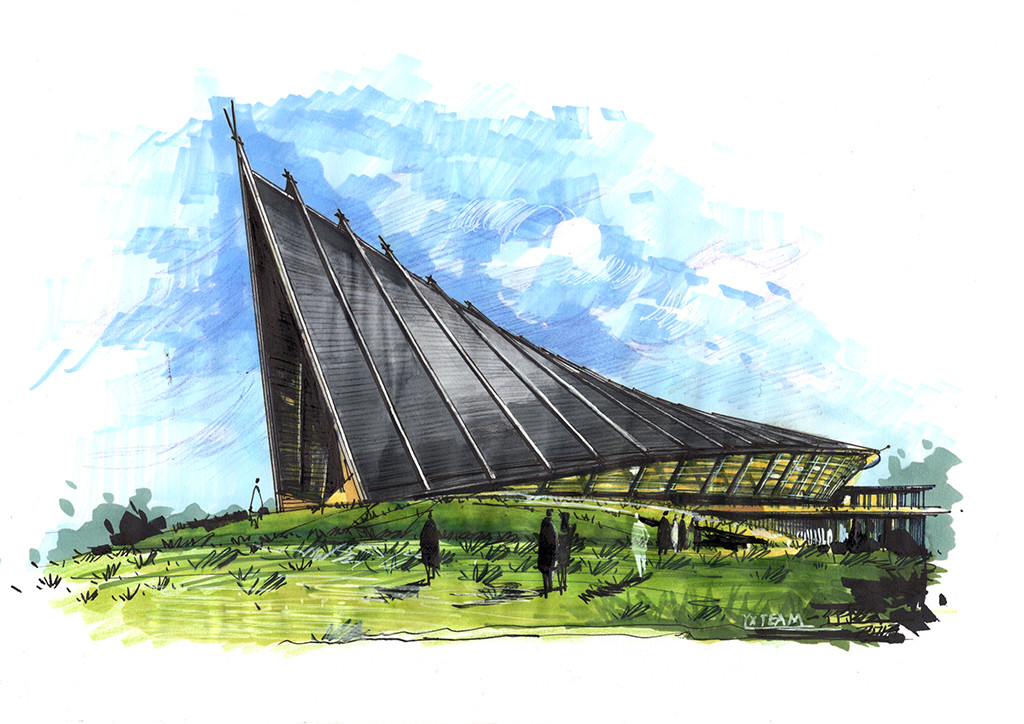

STEP6: 调整整个画面。处理建筑周边的植物,草地及天空。

马克笔:59.48.43.52.191.彩铅:草地绿,天空蓝,淡紫色

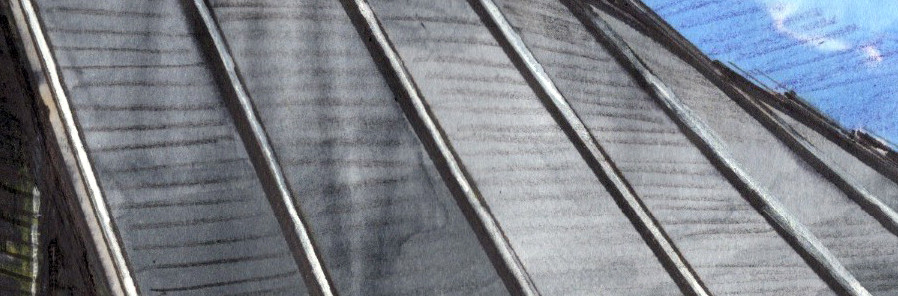

细节1

画完整体建筑后,感觉总是少点什么内容,然后多多仔细观察一下建筑的材质,肯定会发现不一样的地方。

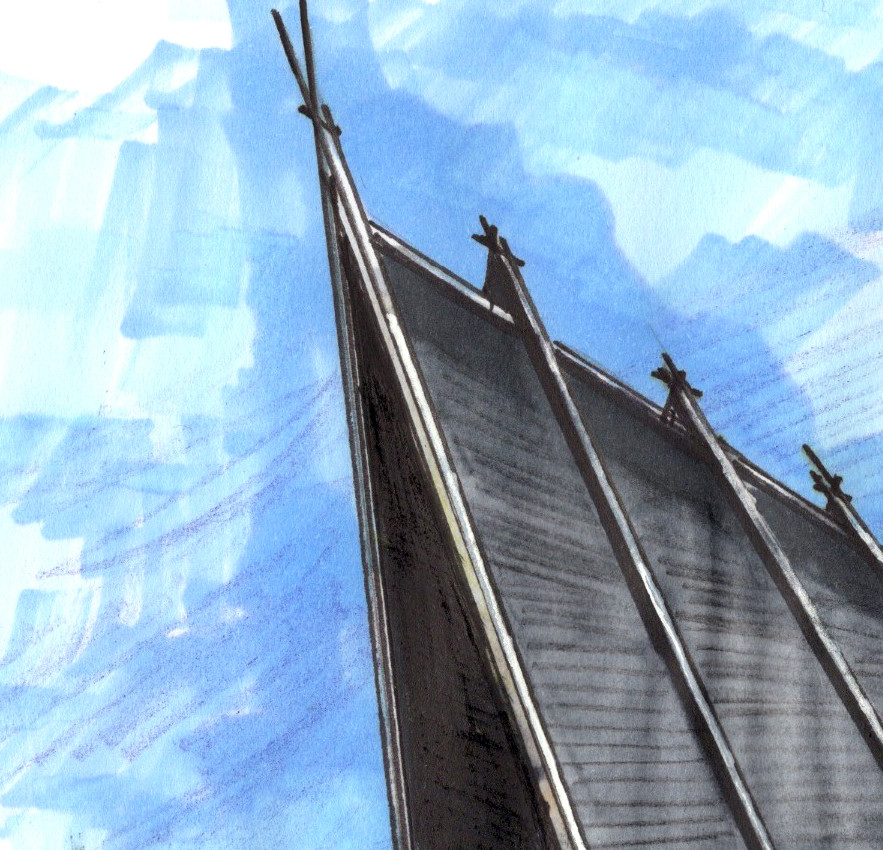

细节2

其实这个地方画的比较失败,问题在于,建筑的这个尖角部分,周围可以不用画天空的,画完后就后悔了,加上天空会显得这个建筑比较低,气势减弱很多。如果不画就可以让人感觉这个建筑深入云里,感觉会比较好一些。

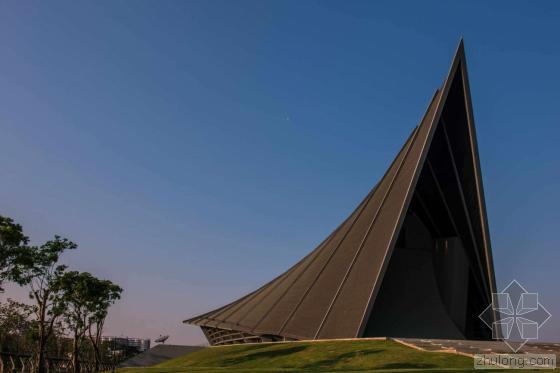

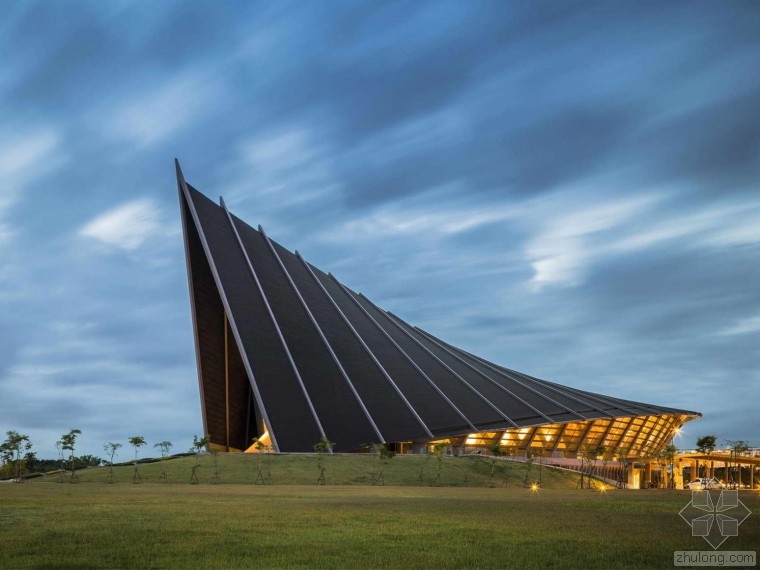

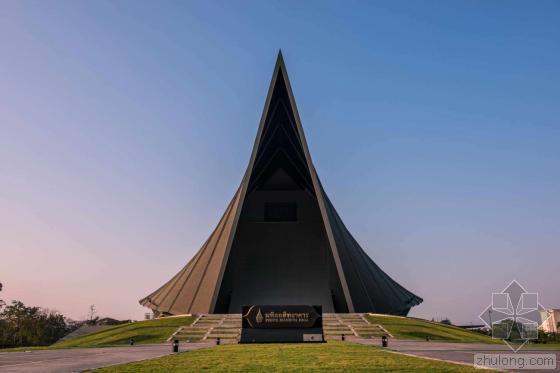

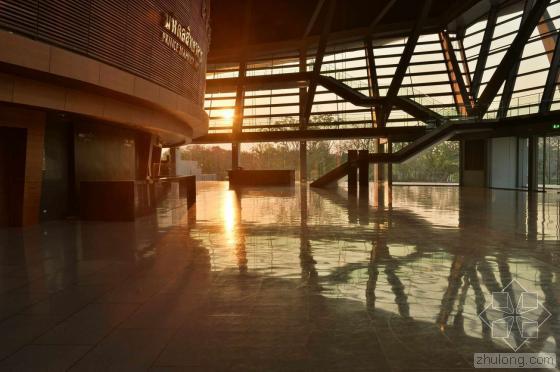

参考图片

Prince Mahidol Hall has been designed as a world class, 2,000 seats Theater which located in Mahidol University, Salaya campus. The hall space is acoustically designed to accommodate the best natural acoustic for opera or orchestra symphony, by the way this hall would be achieve the various activities of the university.

The structure element of roof lines repetitive pattern was inspired by the beauty of human skeleton and the pitch form often found in traditional Thai architecture and also reflected to Mahidol university logo. The roof is also designed to eliminate exterior noise by the construction of two layers of envelop with inside a concrete shell. The lobby and corridors are arranged along the exterior glazed walls. Low-E glazing panels were chosen to allow natural day-
